材料挤压是一种关键的制造工艺，它能够在不同领域（例如使用 3D 打印机的领域）生产复杂的形状和零件。基本上，这种方法的工作原理是将材料（通常是热塑性塑料或金属）通过模具连续成型为具有精确横截面的型材。在众多挤压材料中，铝挤压材料因其重量轻、强度高、重量轻以及耐腐蚀性强而被认为是独一无二的。为了实现这些目标，我们将研究有关材料挤压的各个方面，包括挤压材料的运作方式、影响其质量和效率的因素，以及最重要的是，挤压材料的最佳应用领域以及它相对于制造业目前使用的其他系统的优势。这些知识将帮助我们更好地理解挤压技术在工业增长中的重要性，通过基于当前全球趋势的设计和创新的进步。
挤压工艺是怎样的？
挤压是如何进行的？
挤压工艺涉及多个阶段，以将原材料转化为所需形状。首先，在加热室中喂入原材料，原材料通常是颗粒或坯料，随后熔化或软化。然后，螺杆或柱塞将材料向前移动，同时通过施加压力将其推过选定的模具。使用空气或水浴等冷却方法，以固化并保持挤压物品的所需尺寸。在整个过程中，温度、压力和模具设计等变量极大地决定了最终产品的质量和性能。
讨论材料挤压的各个阶段。
- 材料准备：选择颗粒或坯料形式的原材料并准备熔化或软化。
- 加热：材料进入加热室，在那里达到可供加工的温度。
- 运输：使用螺钉/柱塞的系统在受控的压缩力下逐渐推动软化的材料。
- 成型模具：材料在通过模具时会呈现不同的形状，这取决于材料在这些装置出口处的横截面。
- 冷却：此步骤涉及利用水/空气冷却挤压型材，从而使它们凝固成指定的尺寸，同时仍保持挤压所需的比例。
- 切割：在此过程中生产的连续长度可能需要切割成所需的尺寸，然后才能进一步加工或用于其他地方。
哪些物质可以进行挤压？
Extrudable substances comprise thermoplastics (e.g., PVCs, polyethylenes and polystyrenes), thermosetting plastics like epoxies & phenolics; metals such as aluminiums & coppers; composites etc. These various kinds of matter are appropriate for being extruded since each has its own special features that enable easy heat treatment together with application of pressure during processing.
What are some materials that are generally used to extrude plastics?
What does thermoplastic mean, and why is it important?
When heated, they become flexible, shapeable, and harden on cooling. For this reason, thermoplastics are classified as polymers. This means that their properties do not significantly deteriorate even if they are reshaped or remolded many times over. Thermoplastics have a wide range of uses in different sectors due to their flexibility during processing as well as after final production, where they can be applied in packaging materials and consumer goods, among others like automotive components, just to mention a few examples. Their recyclability also ensures environmental conservation since this supports sustainable manufacturing practices while still maintaining good performance levels at the end-use stage.
What is ABS?
Acrylonitrile butadiene styrene (ABS) is a type of plastic that belongs to the family called thermoplastics which means it can be melted down multiple times without losing any of its properties. It is one tough material with great impact, resistance, and durability, so it’s no surprise that people use it often. The three monomers from which acrylonitrile butadiene styrene copolymerizes include acrylonitrile, which provides chemical resistance as well as thermal stability, Butadiene for toughness improvement while Styrene helps make ABS rigid enough for easy processing too. These features combined together allow this material to find wide applications ranging from automobile parts through electronic housings up to toys, especially bricks made by LEGO Company, not forgetting plumbing fittings, among others, which require balancing cost against performance ratio perfectly well. One other thing about this substance is that you can easily mold & paint it, too, thus enhancing its versatility during the manufacturing process.
Which role do composite materials play in relation to plastic extrusion?
Composite materials improve the mechanical strength of items produced by extruding plastics. Composites are normally made up of a matrix that could be thermoplastic reinforced with fibers or particles like glass and carbon, among other natural ones. Their combination leads to higher stiffness as well as strength compared to conventional thermoplastics. A reinforcing agent is uniformly dispersed throughout the plastic during extrusion, thus giving rise to a product that capitalizes on both constituents’ merits. Composites find more use in plastic extrusion within an aerospace industry, where performance, weight reduction, and material utilization rates matter most alongside the automobile sector, which demands enhanced mechanical properties coupled with reduced mass. Additionally, these composites can be customized for particular applications, making them highly adaptable during the manufacturing process.

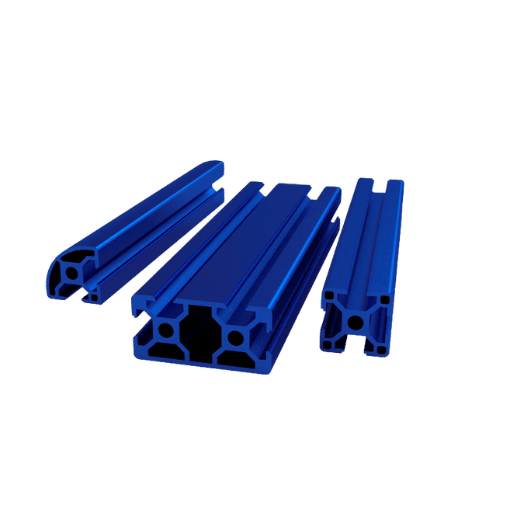

What makes aluminum extrusion different from plastic extrusion?
What is the advantage of using aluminum alloy?
Aluminum alloys have many benefits that make them popular in a variety of applications. To begin with, they offer an outstanding strength-to-weight ratio which gives them considerable structural strength while still being light enough to be used in industries such as aerospace and automotive. In addition, aluminum alloys exhibit exceptional resistance to corrosion thus improving durability as well as reducing maintenance requirements in manufacturing technology. Moreover, their good thermal and electrical conductivity makes it possible for these materials to be used in electrical or heat applications. It is also worth mentioning that aluminum alloys are highly malleable, so complex shapes can be achieved easily through extrusion welding, fabrication, etcetera; finally, what further contributes towards sustainability is their recyclability since aluminum can be reused without losing any of its properties; hence, making it environmentally friendly too.
Where is aluminum extrusion used?
- Aluminium extrusions find wide usage across various sectors due to their versatility combined with performance characteristics which include material jetting for creating intricate designs.
- Construction: This involves window frames, door frames, curtain walls, and roofing systems.
- Automotive industry: Here structural components heat exchangers lightweight frameworks among others are made from this metal with the help of advanced manufacturing technology.
- Aerospace sector: Aircraft structures, fuselage components, landing gear parts, etcetera can also be manufactured through these methods.
- Electronics sector: Heat sink enclosure frames for electronic devices, among other things, can all be made using aluminum extrusions because they are good conductors of both electricity and heat, thus enhancing performance levels within this particular field.
- Consumer products category: Examples under this section may entail furniture items sporting goods kitchenware appliances etcetera; all these objects usually require some degree of malleability during their production stages therefore making aluminium an ideal choice material-wise.
- Railways industry (rail and transit): Train body structures, platform components, signage systems, etcetera could also benefit greatly from such technologies since they utilize the high strength properties coupled with the lightweight nature exhibited by aluminum alloys which are resistant to corrosion too thus ensuring optimal efficiency levels in this sector.
These applications take advantage of aluminum’s light weight, strength and resistance to rusting so as to improve efficiency and productivity.
What is the place where 3D printing is used in material extrusion?
How does fused deposition modeling work?
Fused Deposition Modeling (FDM) is an additive manufacturing process that fabricates three-dimensional objects by depositing thermoplastic materials layer by layer. The method begins with a reel of filament fed through a heated extrusion nozzle. The nozzle melts the filament so it can be extruded onto a build platform in precise patterns laid out by a computer-aided design (CAD) model. As each layer is deposited, it rapidly cools and hardens, bonding with the one beneath it. This continues until the entire object has been built up; at this point, it can be removed from the build platform and post-processed as necessary. Complex geometries are possible with FDM, making it widely used for prototyping and functional part production across many industries.
What are the advantages of 3D printing technology for material extrusion?
There are several major benefits associated with using 3D printing technology, especially when considering material extrusion additive manufacturing. First off, rapid prototyping is made possible which allows for quick and cost-effective iteration of designs by designers or engineers thus reducing lead time and enabling concept validation before committing to more expensive manufacturing processes. Secondly, complex geometry support coupled with customization capabilities makes it easy to create intricate parts that may be difficult or impossible via traditional fabrication methods. Additionally, only required quantities are used because there is no wastage during processing. Last but not least, on-demand production reduces inventory holding costs while simultaneously increasing supply chain responsiveness, thus improving overall operational efficiency within different sectors.
What materials work best with FDM?
Fused Deposition Modeling (FDM) can work with different types of thermoplastic materials utilized across various applications. Polylactic Acid (PLA) is frequently chosen due to its ease of use and biodegradability. Acrylonitrile Butadiene Styrene (ABS), on the other hand, is appreciated for being tough as well as impact resistant. Polyethylene Terephthalate Glycol (PETG) combines properties from both PLA and ABS but it also exhibits good transparency alongside flexibility. Thermoplastic Polyurethane (TPU) is known for its elastic nature coupled with high flexibility levels. Other specialty materials like Nylon or Carbon Fiber composites may be used when increased strength, heat resistance, or specific mechanical characteristics are needed.
How can we solve extruder troubles?
What can be done to fix problems with the extruder?
Several issues can arise in the process of extrusion, which could affect the quality of products and production efficiency. Common problems are as follows:
- Material Jamming: This happens when filament gets stuck in the hot end or feeder causing inconsistent extrusion or complete failure of the process.
- Inconsistent Diameter: When there are variations in the diameter of filaments it may result into an uneven flow of materials thereby leading to inconsistent layer height and surface finish.
- Poor Adhesion: Weak bonding between layers may cause warping or delamination, thus compromising on the structural integrity of the final parts produced.
- Overheating: Very high temperatures can degrade material properties such as discoloration, brittleness or loss of strength.
- Under-extrusion: If there is not enough material being supplied through nozzle during printing then gaps will appear within walls of printed object making it weak at those points.
- Stringing: Extra amount filament might ooze out while printer head moves from one point to another without printing anything hence creating unwanted strings on finished model.
What should I do if my extruder has some problems?
- Material Jamming: Remove any blockages in the hot end or feeder; ensure correct loading and no tangling up the filament.
- Inconsistent Diameter: Measure filament thickness using vernier caliper then adjust settings accordingly; try using high-quality filaments which have less variability.
- Poor Adhesion: Increase bed temperature; change layer height; improve surface preparation, e.g., use a glue stick instead of hairspray for better results, etc.
- Overheating: Monitor the temperature at which you are extruding your plastic materials; if it is too high, reduce it until all requirements set by manufacturers are met. Proper cooling must be ensured, especially during larger 3D prints where more heat is produced within a short period, hence affecting quality negatively.
- Under-extrusion: Increase flow rate or nozzle temperature; clean clogs from extruder assembly and ensure filament feeds smoothly into it.
- Stringing: Adjust retraction settings; raise travel speed between parts; clean nozzle regularly to avoid accumulation of excess materials etc..
What are some possible faults in extruded materials?
- Surface Defects: These defects may appear as bubbles, holes, or rough spots caused by the entrapment of gas or uneven flow.
- Distorted geometry: This can be manifested through warping or dimensional inaccuracy due to thermal stress and insufficient cooling.
- Poor interlayer bonding: When one layer is not properly attached to another, it may separate leading to the breakage of a part as a whole.
- Discoloration: Aesthetic quality can be affected when there is an alteration in color which results from over-heating or contamination.
- Un-uniform filament properties: The width or density of filaments varies, resulting in inconsistent rates of flow and different profiles during extrusion.
- Breakages: These are structural failures that occur because an object becomes too weak mechanically or it has been used for long thus becoming fatigued which undermines durability.
Which technological advancements are likely to define the future of material extrusion?
What is being done in this field?
- Multi-Structural Printing: This involves techniques that can enable multiple materials to be printed at once so as to form complex shapes having different properties.
- Variable Layer Height: These are systems that change the thickness of each layer during printing, thus optimizing speed and detail where necessary.
- Real-Time AI-Based Process Monitoring: Ensuring constant quality through instant detection by means of artificial intelligence (AI) while printing continues and correction of any errors made so far.
- Bioprinting: This refers to advanced applications for creating live tissues using material extrusion technology, which has great implications for medical science research and regenerative medicine, among others.
- Smart Materials: Filaments designed with response-ability towards environmental changes, thereby enabling the production of adaptive parts across diverse fields.
How is 3D printing material changing?
3D printed materials are evolving by means of new compounds and improved properties. For example, carbon-fiber-reinforced filaments have been developed that have greater tensile strength and stiffness than other types, which makes them useful for load-bearing applications. Also, more flexible thermoplastic elastomers (TPEs) are now available which can be used to produce parts that need to withstand wear and tear. Another area being worked on is bio-based and recyclable filaments so as to promote sustainability within the industry. This is not all; integration with nanomaterials has increased thermal conductivity, among other things, thereby increasing their electrical conductivity and expanding where they can be used, such as in electronics or the automotive sector. These steps forward mean functionalizing 3D printing but also making it more sustainable while at the same time versatile enough for use in a wide range of fields.
What are some potential future uses for material extrusion across industries?
There are many possible applications for material extrusion in different sectors going forward, thanks mainly to advancements made technologically coupled with scientific breakthroughs related to materials science as well. Weight-critical components demanded by the aerospace sector may soon benefit from lightweighting efforts associated with 3d printing using various forms of plastic filament, including those designed specifically for this purpose through advanced techniques like selective laser sintering (SLS). Similarly rapid prototyping could be achieved within automotive manufacturing, leading not only increased efficiency but also performance improvements, especially where complex shapes such as turbines need production quickly because each one needs its unique mold which takes time under traditional methods thus affecting output quantities negatively if adopted earlier than later even though there will still be advantages gained even if implemented at any point along the timeline.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is material extrusion in additive manufacturing?
A: The process of material extrusion in additive manufacturing involves building three-dimensional objects by depositing materials layer by layer. This method is typically used for shaping by pulling them through a nozzle.
Q: What are some common examples of material extrusion technology?
A: Some typical instances of material extrusion technology include fused filament fabrication (FFF) and extrusion printing, where a heated nozzle is used to deposit molten material in precise patterns to form objects.
Q: What range of materials can be used in material extrusion?
A: Material extrusion can work with different types of materials such as thermoplastics, metals and composites among other things. When deciding which one to use for a particular application during fabrication, one usually takes into consideration its final properties and intended use.
问：挤压过程是如何进行的？
在挤压过程中，坯料被推入挤压机，在挤压机中被加热至液态，然后在压力下保持该温度。之后，熔融物质通过喷嘴，冷却并凝固成所需形状。
问：为什么制造业中普遍采用材料挤压？
答：制造业经常采用材料挤压，因为它们具有灵活性、成本效益以及在没有太多浪费的情况下创造复杂形状的能力，因此使其成为原型设计和大规模生产目的的理想选择。
问：使用熔丝制造技术有哪些好处？
答：熔融长丝制造具有许多优点，包括用户友好性、原料可用性广泛，以及能够产生复杂的设计，这在各种制造应用中非常有用。
问：项目中挤压材料的选择受哪些因素决定？
答：选择什么样的机械性能，耐热性，化学相容性等，主要取决于所制造的最终产品需要满足哪些具体要求。
问：材料挤压可以用于金属物体吗？
答：是的，可以使用某些类型的长丝对金属物体进行材料挤压，这些长丝经过配制，可以在通过挤压机加工时处理此类材料。
问：加热喷嘴在挤出过程中起什么作用？
挤压过程中加热喷嘴的作用是在材料沉积出来之前将其熔化。这有助于确保层间流动顺畅且粘合性良好，从而能够准确高效地实现所需的制造形状。
