Soft PVC Extrusion

What is Soft PVC Extrusion?

Understanding the process of soft PVC extrusion

Soft PVC extrusion is a continuous process where raw plastic material (soft PVC) is converted into a formed profile. The process begins when the PVC, in the form of pellets or powder, is introduced into the hopper of the extruder. The material is then conveyed through the extruder barrel, where it encounters a screw mechanism. This screw is rotated, generating heat due to friction, which melts the PVC. The molten plastic is then forced through a die, which shapes it into the desired profile. As the extrusion exits the dice, it is cooled and solidified by a water bath or by blowing cold air. Finally, the solid product is cut into the desired length. The entire extrusion process needs meticulous control over temperature, speed, and pressure to ensure the quality and dimensional accuracy of the final product.

Differences between soft PVC and rigid PVC extrusion

The differences between soft PVC and rigid PVC extrusion can be understood in terms of the following factors:

• Material Composition: Soft PVC, also known as flexible PVC, contains added plasticizers that increase its plasticity and flexibility. Rigid PVC, on the other hand, does not have these plasticizers and is hence stiffer and more brittle.
• Application: Due to its flexibility, soft PVC is commonly used for products that require bending or flexibility, such as cables, hoses, and medical tubing. Rigid PVC is often used for applications that require rigidity and strength, such as construction profiles, window frames, and pipes.
• Extrusion Process: The extrusion process for both materials is similar, but the temperatures and speeds might vary depending on the specific characteristics of the PVC type. Soft PVC usually requires lower temperatures compared to rigid PVC.
• Recyclability: While both types of PVC are recyclable, the plasticizers in soft PVC can complicate the recycling process.
• Environmental Impact: The plasticizers used in soft PVC can potentially leach out into the environment, making it less environmentally friendly compared to rigid PVC.

Benefits and applications of soft PVC extrusions

Soft PVC extrusions offer numerous benefits and find use in a variety of applications:

• Flexibility: One of the primary advantages of soft PVC is its flexibility, which allows it to be used in applications that require bending and flexing without breaking or cracking.
• Durability: Soft PVC is resistant to weather, chemical rotting, corrosion, shock, and abrasion. This makes it a long-lasting material for many applications.
• Easy Processing: Soft PVC can be easily molded and extruded into various shapes and sizes, making it highly versatile.
• Cost-Effective: Compared to other materials, soft PVC is relatively inexpensive to produce and process.

Applications of soft PVC extrusions include:

• Medical Equipment: Due to its flexibility and biocompatibility, soft PVC is widely used in the production of medical tubing, blood bags, and IV bags.
• Electrical Insulation: Soft PVC is used extensively for insulation and sheathing of cables due to its excellent electrical insulation properties.
• Automotive Parts: In the automotive industry, soft PVC is used for manufacturing parts like dashboard overlays and door gaskets due to its durability and flexibility.
• Consumer Goods: Many consumer goods, like shoes, toys, and sports equipment, make use of soft PVC for its adaptability and cost-effectiveness.

Types of products manufactured using soft PVC extrusion

Several products are manufactured using smooth PVC extrusion due to its versatility and cost-effectiveness:

• Weather Stripping: Soft PVC is commonly used in the production of weather stripping due to its durability, flexibility, and excellent weather-resistance properties.
• Window Seals: The ability to mold Soft PVC into complex shapes makes it ideal for window seals, providing airtight and watertight sealing solutions.
• Hoses and Tubing: The flexibility and resilience of soft PVC make it a desirable material for manufacturing various types of hoses and tubing used in industries ranging from gardening to aerospace.
• Wire and Cable Sheathing: Soft PVC’s excellent insulating properties and resistance to environmental factors make it ideal for sheathing wires and cables.

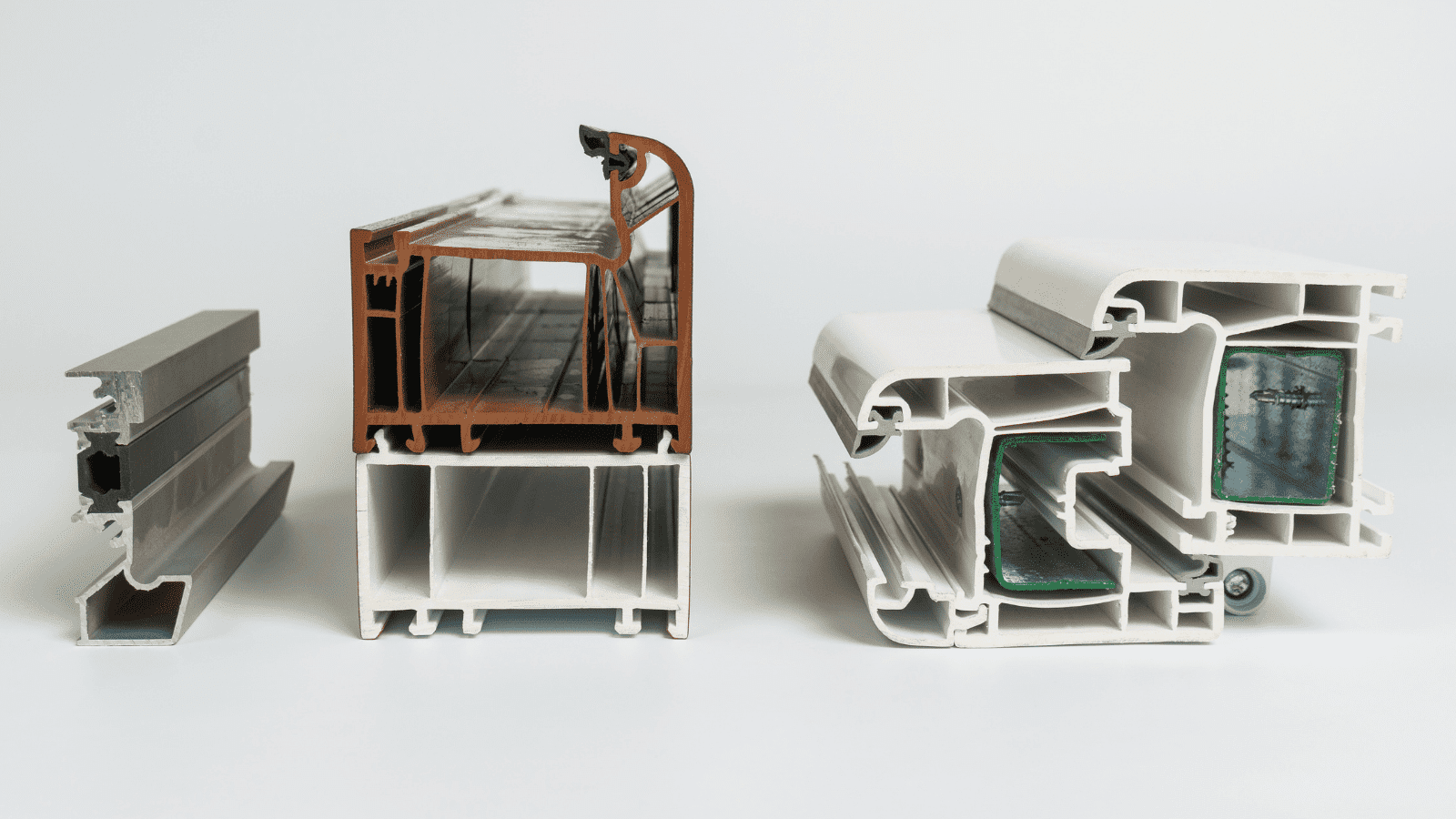

• Profile Extrusions: Soft PVC is used extensively in the production of profile extrusions due to its easy processability and adaptability to various designs and specifications.

These are just a few examples of the diverse range of products that can be created using soft PVC extrusion, demonstrating the material’s broad applicability across multiple industries.

Customization and specifications in soft PVC extrusion

Soft PVC extrusion has highly customizable properties, making it a go-to material for many applications across various industries. Some of the standard customization options include:

• Color Customization: Soft PVC can be easily colored, providing manufacturers with the ability to match any desired color for their product.
• Durometer (Hardness) Customization: The hardness of soft PVC can be adjusted based on specific requirements, ranging from very mild to semi-rigid.
• Size and Shape Customization: Through extrusion, soft PVC can be molded into a wide variety of shapes and sizes, from thin tubing to complex profile extrusions.
• Additives: Specific additives can be incorporated into the soft PVC to enhance specific properties such as UV resistance and flame retardance or to achieve specific grades of food or medical safety.

The desired application of the final product guides specifications in soft PVC extrusion. They include factors such as material thickness, durometer, tensile strength, elongation at break, and weight per meter. Understanding these specifications and how to manipulate them through customization is crucial in optimizing the use of soft PVC extrusion in manufacturing.

How Does a Soft PVC Extrusion Line Work?

Overview of the extrusion process in soft PVC production

The extrusion process for soft PVC production begins with the preparation of raw PVC resin and the necessary additives. This mixture, often called a compound, is then heated to a specific temperature to achieve a molten state. This molten compound is fed into an extruder, a machine equipped with a rotating screw that pushes the material forward through a heated barrel. The heat and pressure within the extruder allow the PVC to achieve a fluid, dough-like consistency. As the PVC compound exits the extruder, it passes through a die – a shaped hole that gives the compound its final shape. It then enters a cooling system that solidifies the PVC, maintaining its newly acquired form. The extruded product is cut to the desired length and inspected for quality control. This method of extrusion allows for high-speed, continuous production with uniform quality, making it a preferred choice in various industries for soft PVC product manufacturing.

Key components and machinery in a soft PVC extrusion line

The smooth PVC extrusion line consists of several vital features and machinery, each playing an integral role in the extrusion process:

1. Raw Material Feeder: This device feeds the PVC compound into the extruder. It ensures a consistent, steady flow of material, which is crucial for maintaining uniformity in the manufactured product.
2. Extruder: Acting as the heart of the extrusion line, the extruder heats and liquefies the PVC compound. Its rotating screw pushes the molten material towards the die.
3. Die: The die shapes the molten PVC as it exits the extruder, imparting the desired form to the extruded material.
4. Cooling System: Once the PVC exits the die, it enters the cooling system, which rapidly solidifies the material, maintaining its shape.
5. Cutting System: The extruded PVC, now in a solid state, is cut into the desired length by the cutting system.
6. Quality Control Instruments: These tools inspect the final product for any defects and ensure that it adheres to the required specifications.

Each of these components plays a critical role in the soft PVC extrusion line, collectively ensuring the efficiency and quality of the manufacturing process.

Role of additives and compounds in soft PVC extrusion

Additives and compounds play a significant part in the process of smooth PVC extrusion, enhancing both the properties of the end product and the efficiency of the manufacturing process. Various types of additives are incorporated into the PVC compound, each serving a unique purpose:

1. Plasticizers: These are vital for imparting flexibility to the PVC. They reduce the rigidity of the PVC compound, making it more pliable and suitable for the production of soft PVC products.
2. Stabilizers: Stabilizers are essential for preventing the degradation of PVC when exposed to heat during the extrusion process. They protect the PVC from losing its structural integrity and help to maintain its color and appearance.
3. Fillers: Fillers are used to enhance the performance properties of the PVC and to reduce the overall cost of the product. They can improve the hardness, tensile strength, and impact resistance of the PVC.
4. Colorants: Colorants allow for the production of PVC in a wide array of colors, making the products more appealing to the consumer market.
5. Processing Aids: These additives improve the melt strength and fluidity of the PVC during the extrusion process, aiding in seamless manufacturing.

In conclusion, additives and compounds are indispensable in the soft PVC extrusion process, playing a significant role in determining the characteristics, quality, and cost-effectiveness of the manufactured products.

Quality control and testing in soft PVC extrusion lines

To ensure the production of high-quality and consistent soft PVC products, rigorous quality control and testing procedures are conducted in the extrusion lines. The process begins with the testing of the raw materials, including the PVC compound and various additives, to verify their specifications and quality. During the extrusion process, real-time monitoring is carried out to check parameters like temperature, pressure, and speed, ensuring optimal conditions for PVC processing are maintained. Sampling is done at regular intervals, and the samples are subjected to various tests such as hardness testing, tensile strength testing, dimensional stability testing, and color consistency testing. Any deviations from the defined standards trigger corrective actions to maintain the quality of the output. Furthermore, the finished products undergo a final quality check before they are approved for packaging and dispatch. This comprehensive quality control and testing system guarantees that the finished products meet the defined standards and customer expectations.

Environmental considerations in soft PVC extrusion

The soft PVC extrusion process, like many manufacturing activities, has several environmental considerations that must be addressed to mitigate adverse impacts:

1. Resource Conservation: Efficient use of resources, particularly non-renewable ones, is a crucial aspect. This includes minimizing waste and optimizing the use of raw materials.
2. Emissions Control: The PVC extrusion process can generate emissions that may be harmful if released untreated into the environment. Effective emission control systems must be in place to filter and treat these emissions.
3. Energy Efficiency: The extrusion process is energy-intensive. Implementing energy-saving measures, such as optimizing machine efficiency and incorporating renewable energy sources, can significantly reduce the environmental footprint.
4. Recycling and Waste Management: Systems should be in place to recycle waste material from the extrusion process, reducing landfill waste and conserving resources.
5. Safe Disposal of By-products: Certain by-products from the PVC extrusion process may require unique disposal methods to prevent environmental contamination.

These considerations underline the importance of integrating sustainable practices into the PVC extrusion process to minimize its environmental impact.

Applications and Industries Using Soft PVC Extrusions

Utilization of soft PVC extrusions in the construction industry

Soft PVC extrusions are widely employed in the construction industry due to their versatility, durability, and cost-effectiveness. One of the most common applications is in window and door frames, where soft PVC provides excellent thermal and acoustic insulation, high weather resistance, and minimal maintenance requirements. Furthermore, they are extensively used in electrical conduits for safe and secure electrical wiring installations. Soft PVC extrusions also find application in plumbing systems, offering a robust solution for water and waste lines. The material’s inherent resistance to corrosion and chemical damage makes it an ideal choice even in harsh construction environments. Lastly, due to their flexibility and ease of customization, soft PVC extrusions are also used in creating sealing profiles for construction, contributing to enhanced energy efficiency in buildings.

Electrical and Insulation Applications of Soft PVC Extrusion Products

Soft PVC extrusions are extensively used in the electrical industry due to their excellent insulation properties. They are commonly found in insulation for wiring and cables, providing safety and durability. Their superior resistance to heat, flame, and electrical conductivity makes them the material of choice for electrical conduits and cable jackets.

Automotive and Transportation Sectors Incorporating Soft PVC Extrusions

In the automotive and transportation sectors, soft PVC extrusions are utilized for a variety of applications. They’re used in the manufacturing of components such as door seals, window seals, and interior trims, providing durability, UV resistance, and excellent aesthetics. Additionally, due to their high flexibility and resistance to weather conditions, they are also used for the insulation of electrical wiring within vehicles.

Medical and Healthcare Applications of Soft PVC Extruded Products

Soft PVC extruded products play a crucial role in the medical and healthcare industry. Their biocompatibility, flexibility, and sterilizability make them ideal for applications such as tubing for intravenous (IV) lines and catheters, as well as seals for medical devices. Due to their chemical stability, they can safely transport a wide range of fluids, including blood, medications, and nutrients.

Other Industrial and Niche Usages of Soft PVC Extrusion Lines

Beyond these sectors, soft PVC extrusions find numerous other applications. In the maritime industry, they are used in creating water-resistant seals for marine vehicles. They are also used in the manufacturing of protective gear due to their chemical resistance and flexibility. In the clothing industry, soft PVC extrusions are applied to create waterproof zippers and seals for outdoor and sportswear. This diversity of applications demonstrates the versatility and adaptability of soft PVC extrusions across various industries.

Features and Properties of Soft PVC Material

Unique characteristics and advantages of using soft PVC material

Soft PVC, or Polyvinyl Chloride, harnesses several unique characteristics that make it a preferred material in many industries. First and foremost, its superior flexibility, even at low temperatures, allows for ease of molding and extrusion into a diverse range of shapes and forms. This is particularly beneficial in industries requiring custom, intricate designs. Additionally, soft PVC boasts impressive chemical resistance, making it suitable for handling a wide array of substances, from aggressive industrial chemicals to delicate medical solutions. Its high durability ensures longevity, even in harsh environmental conditions, presenting cost-efficiency for businesses.

Further, soft PVC is a low-cost material, making it an economically viable choice for manufacturers. Lastly, soft PVC is flame retardant and offers good electrical insulation properties, providing an added layer of safety in its applications. These unique characteristics and advantages have cemented soft PVC’s place as a material of choice across various industries.

Flexibility, resilience, and durability in soft PVC extrusions

The flexibility, resilience, and durability of soft PVC extrusions contribute significantly to their wide-ranging applications across industries. The flexibility of soft PVC material allows for intricate designs and shapes, catering to the bespoke needs of many sectors. Despite its flexibility, soft PVC retains a high degree of resilience, allowing it to withstand various forms of stress without permanent deformation. This resilience extends the lifespan of products, thereby reducing replacement costs and offering more excellent value to consumers. Further, the durability of soft PVC, especially its resistance to environmental stressors such as UV rays, corrosive chemicals, and extreme temperature fluctuations, ensures that it retains its functionality and aesthetics over time. This trio of flexibility, resilience, and durability makes soft PVC extrusions a versatile, cost-effective, and reliable solution for a plethora of applications.

Resistance to temperature, chemicals, and environmental factors

Soft PVC material exhibits robust resistance to a broad spectrum of temperatures, chemicals, and environmental factors, making it a suitable option for applications in harsh conditions. Withstanding a wide temperature range, soft PVC can function effectively in extreme hot and cold settings without losing its structural integrity or performance capabilities. Its chemical resistance is notable, particularly against corrosive substances, ensuring that its functionality and appearance remain unhampered even when exposed to such environments. Additionally, soft PVC’s resistance to environmental factors, such as UV radiation and moisture, protects it from degradation and extends its lifespan. Hence, the resilience of soft PVC to temperature fluctuations, chemical exposure, and environmental stressors underscores its suitability for demanding applications across diverse industries.

Options for customization and design in soft PVC products

Soft PVC products offer a significant degree of customization and design flexibility, accommodating a variety of requirements across different applications. Due to its malleability, soft PVC can be extruded into various forms, shapes, and dimensions, allowing for tailored solutions that meet specific functional and aesthetic needs. In addition, the material’s compatibility with numerous color pigments enables the production of products in a wide array of colors, further enhancing design options. These customization possibilities extend from the physical characteristics, such as hardness and texture, to the integration of additional features like UV resistance or flame retardancy. This broad spectrum of customization and design choices underscores the versatility of soft PVC, making it a preferred material in numerous industries.

Comparison with other plastic materials in terms of softness and flexibility

When comparing soft PVC with other plastic materials in terms of softness and flexibility, several counterparts come to mind.

1. Polyethylene (PE): This material is softer than PVC and offers good flexibility. However, it lacks the superior chemical resistance and durability provided by PVC.
2. Polypropylene (PP): PP is more rigid and less flexible than soft PVC. However, it provides excellent resistance to fatigue.
3. Polystyrene (PS): PS is typically more rigid and less flexible than soft PVC, making it less ideal for applications needing flexibility.
4. Polyurethane (PU): PU offers a similar level of softness and flexibility as soft PVC, and it is noted for superior abrasion resistance.
5. Polylactic Acid (PLA): PLA is more rigid and less flexible than soft PVC. While it’s biodegradable, it lacks the durability and chemical resistance of PVC.

Thus, while each of these materials has its unique advantages, soft PVC’s blend of softness, flexibility, and resistance properties makes it a standout choice for various applications.

Future Trends and Innovations in Soft PVC Extrusion

Advancements in the production technology of soft PVC extrusion lines

Significant advancements have been made in the production technology of soft PVC extrusion lines. Notably, the integration of automation and digital control systems has improved efficiency, consistency, and quality control. Computerized systems now monitor the entire extrusion process, ensuring that the temperature, speed, and pressure remain within optimal ranges. This minimizes the chance of human error and ensures uniformity across all produced units. Additionally, advancements in die design have resulted in superior precision in shaping the PVC, allowing for complex cross-sectional profiles to be made with minimal waste. Lastly, the development of eco-friendly additives and stabilizers attests to the industry’s commitment to sustainability, as they reduce the environmental impact of PVC production while maintaining product properties. These technological advancements have not only enhanced the potential of soft PVC but have also paved the way for innovation in its applications.

New applications and evolving demand for soft PVC extruded products

The versatility of soft PVC has led to its use in a growing number of applications, with market constantly evolving across a variety of industries.

1. Automotive industry: Soft PVC is increasingly used to produce car interiors, including dashboard panels, door panels, and floor mats. Its durability and aesthetic appeal make it a preferred choice among manufacturers.
2. Medical devices: The use of soft PVC in medical tubing, IV bags, and other disposable devices continues to rise due to its flexibility, clarity, and biocompatibility.
3. Consumer products: Soft PVC is found in a variety of consumer products, such as footwear, toys, and household items. Demand in this sector is driven by its balance of durability and flexibility.
4. Electrical insulation: Its excellent insulating properties have made soft PVC a popular choice for wire and cable sheathing, contributing to safer and more efficient electrical installations.
5. Green building: With the push for more sustainable construction solutions, soft PVC is being used increasingly in green building applications, including energy-efficient windows and doors.

These emerging trends highlight the expanding possibilities for soft PVC, a testament to its adaptability and wide-ranging benefits.

Research and developments in enhancing the properties of soft PVC material

The research and development efforts in the field of soft PVC material are primarily focused on enhancing its properties to expand its potential applications. Scientists and engineers are exploring ways to increase its flexibility, durability, and thermal stability, which are critical factors in numerous industrial applications. Among the innovations is the use of nano-fillers, which can significantly enhance these properties and even introduce new capabilities such as improved fire resistance.

Another significant area of research is the development of bio-based plasticizers, which are envisioned to replace traditional phthalate-based plasticizers. These bio-based alternatives not only enhance the flexibility of the PVC but also reduce its environmental impact, aligning with the global push for sustainable materials.

Researchers are also studying the possibilities of blending PVC with other polymers to create composite materials with superior properties. For instance, combining PVC with nitrile rubber can enhance its oil and solvent resistance, making it more suitable for industrial applications.

Overall, the research and development efforts in enhancing the properties of soft PVC material are poised to open up new avenues for its applications, ensuring its continued relevance in a wide range of industries.

Sustainability initiatives and eco-friendly practices in soft PVC extrusion

Sustainability and eco-friendliness are becoming increasingly important considerations in the field of soft PVC extrusion. One of the most prominent initiatives in this regard is the shift toward the use of renewable and recycled materials. Many companies are exploring ways to incorporate recycled PVC into their extrusion processes, reducing waste and conserving resources.

In line with the push towards greener manufacturing processes, there is also a growing interest in energy-efficient extrusion methods. By optimizing the extrusion process, companies can significantly reduce their energy consumption, thereby reducing their carbon footprint.

Furthermore, the development and use of bio-based plasticizers, as mentioned earlier, also contribute to the drive for more sustainable practices. These plasticizers not only enhance the performance of the PVC but also make it more environmentally friendly by reducing the reliance on fossil-based resources.

In conclusion, these initiatives underscore a growing commitment in the industry to align with global sustainability goals, reinforcing the value of soft PVC material not just for its versatility and durability but also for its potential to contribute to a more sustainable future.

Market expansions and global outlook for the soft PVC extrusion industry

The global market for soft PVC extrusion continues to experience robust growth, fueled by broadening applications across various industries and increasing demand in emerging economies. Significant market expansion is evident in sectors such as construction, healthcare, and automotive, where the characteristics of soft PVC—resilience, versatility, and cost-effectiveness—are highly valued. Particularly in regions like Asia-Pacific, with its rapid urbanization and industrial growth, the demand for soft PVC is escalating at a swift pace. However, the market landscape is not without challenges. Regulatory constraints, mainly related to environmental concerns and fluctuations in raw material costs, can potentially impede market growth. Nonetheless, the industry’s commitment to sustainability and innovation, as mentioned earlier, serves to mitigate these risks and open new avenues for expansion. The outlook for the soft PVC extrusion industry remains promising, with opportunities for growth and development continuing to emerge on a global scale.
